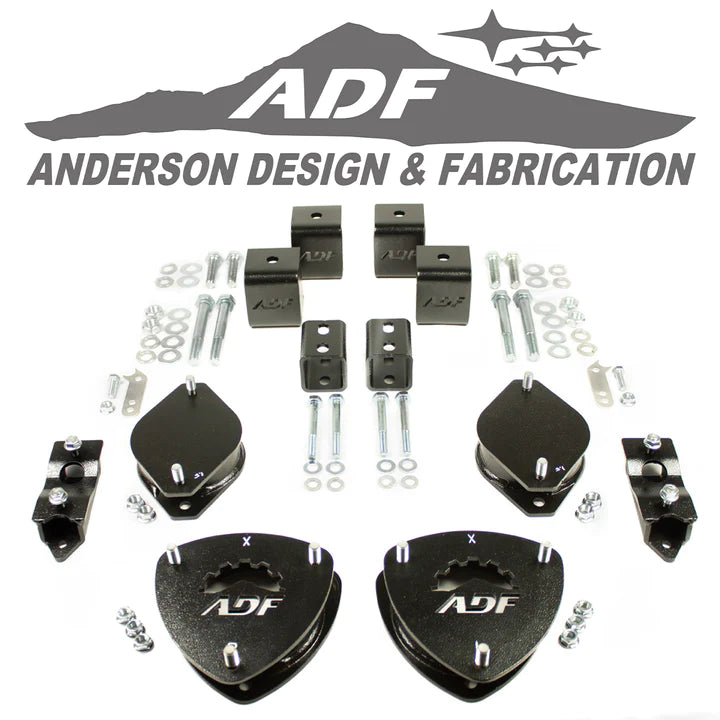

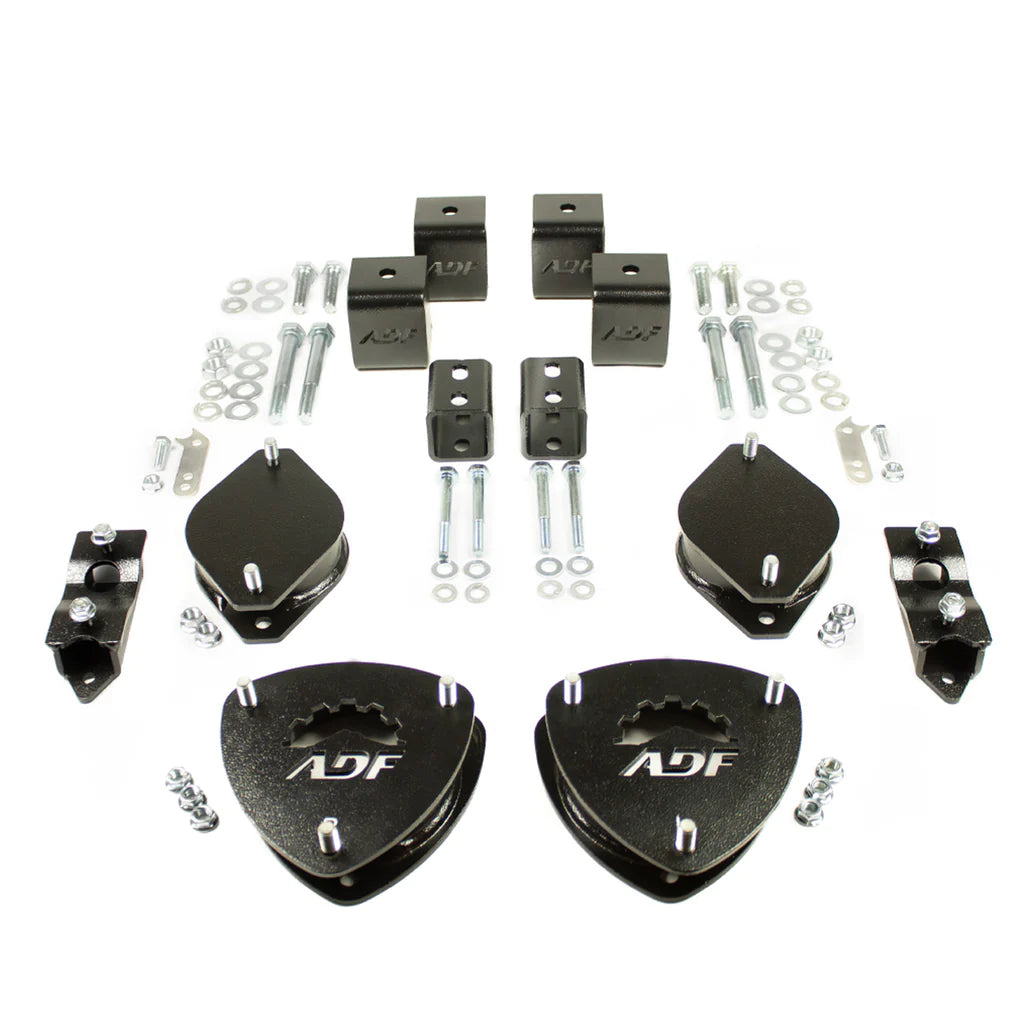

ADF 2018-2023 SUBARU CROSSTREK 1.5" STRUT SPACERS W/ MULTI-LINK SPACERS

Take your adventure to the next level, improve off road capabilities while giving your 2018-2023 Subaru Crosstrek a new sharp, aggressive look. ADF Lift Kits are designed and manufactured in house, in the USA. They stand behind all of their products and offer a lifetime warranty.

Manufacturing

For extreme strength and reliability, they use 3/16” steel plates with ¼” solid center steel tube.

Front spacers are MIG welded with six 4” welds.

Rear spacers are MIG welded four times with 5” welds.

Multi-link spacers are 1/4" steel formed and TIG welded to make a 5 sided box.  Mounting is a 2 piece bolt design (not one long bolt like other companies). The upper portion of the spacer is mounted to the chassis, the lower portion of the spacer is mounted to the subframe.

Factory Alignment

To maintain factory alignment specifications Camber and improved Caster offsets are built into the steel spacers.

- We recommend that you get an alignment after your install, as there may still be a human error factor when installing the camber bolts.

Multi-Link Spacers

We recommend installing multi-link. This keeps your tires centered in its factory location and prevents rubbing when installing larger tires.

Powder Coating

ADF also professionally powder coats all of their products to prevent corrosion and to insure the highest quality of products on the market.

Relocation

Brake line brackets are included in the kit to help relieve the tension in the brake line, after the install.

Sway Bar Relocation Brackets are included to relieve tension and binding in the rear sway bar.

Hardware

All Metric Grade 10.9 Zinc Hardware is included in the kits!

Rear Height Additions

They also offer a few different heights of rear spacers to compensate for added load in the vehicle or to help level vehicles out if they currently aren’t sitting level.  Added height is built in one solid spacer, no stacking of different spacers.

Adding 3/8” compensates for mild loads/weight, + ½” more for excessive loads/weight.

Disclaimer

These kits are designed for Original Equipment Manufacture fitment. We cannot guarantee fitment on non OEM parts; strut mounts, struts, exhaust etc.  Recommend contacting us for fitment verification.

Please note that a majority of their kits are build to order and may take 2-3weeks to manufacture.
