iWire Battery Relocation Kit - 2002-2007 Impreza

Stop playing with cheap stereo cables and ill-conceived components for your battery relocation kit.

iWire has designed a simple solution with all the parts you need for a safe and reliable battery relocation. Just grab up your battery of choice with appropriate mount (iWire does not include battery or tray) and use our harness to bring it all together!

Why would I relocate the battery?

There are many reasons someone would relocate the battery ranging from creating room in the engine bay for a front mount intercooler piping, weight balance, or just making the engine bay look a little tidier.

We created a way for anyone to do this on their own

Yes, battery cables can be scary, but we’ve made it as simple as matching up the labels on the wire to the correct locations.

Large gauge cable is really hard to work with!

Don’t bother trying to grab up that low quality cable (we see that stereo cable in there) and try to splice it together with inadequate tools. With our kit, there is no cutting, crimping, or splicing of any kind. Just unbolt the original cables in the car and put ours in place.

The battery is not just there for power, it’s there for grounding too!

Without grounding, a battery relocation may create more problems than it solves. The issue stems from the fact the battery smooths out the power output from the alternator and we need to make sure the battery still touches the intake manifold so that the ECU that gets its ground from the manifold still gets that important grounding.

We thought of everything.

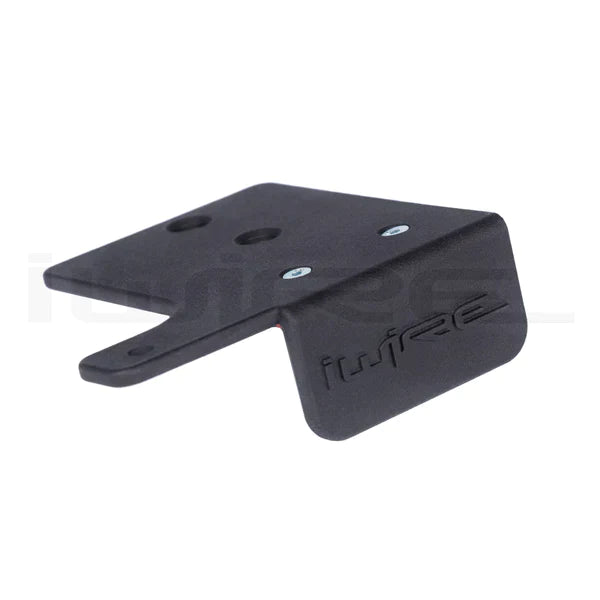

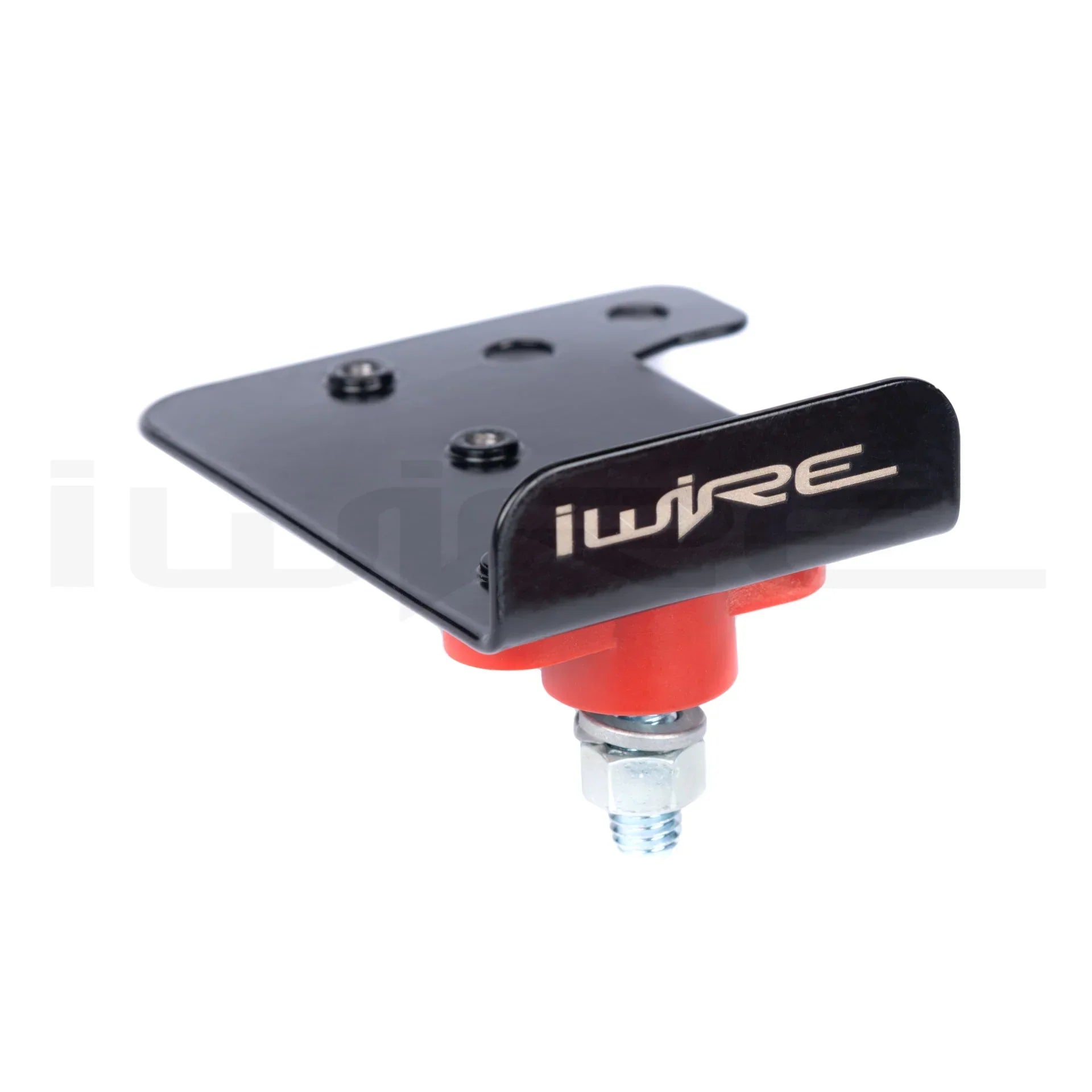

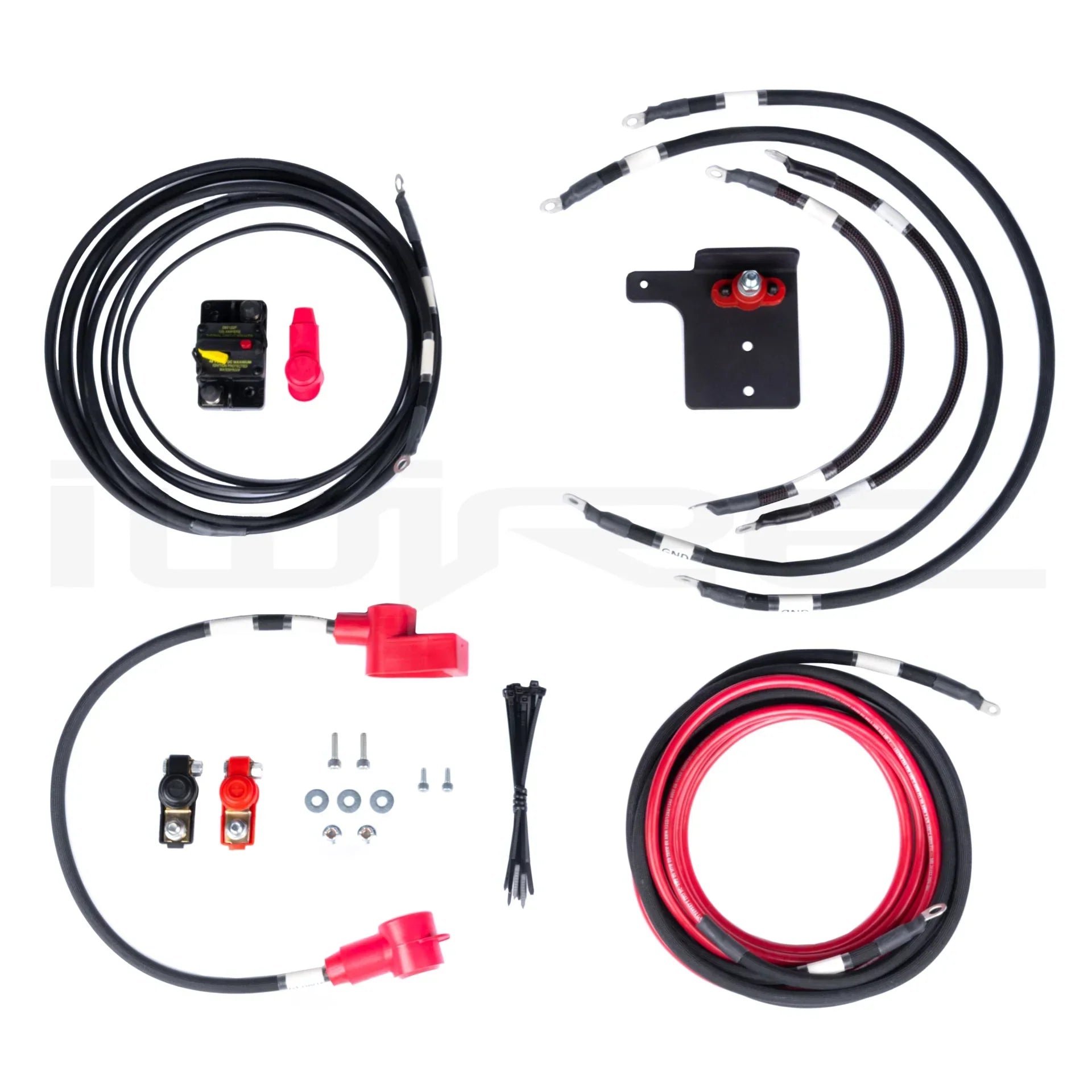

The kit includes a bolt on bracket to hold the power stud in the engine bay as well as a meeting point for the grounding strap from the battery to the ground kit. In the rear there is a manually resettable circuit breaker so that your battery is protected and if you plan on leaving the car sitting for an extended period of time you can easily disconnect the battery from the car to avoid the slow drain modern electronics even when the key is out of the ignition.

iWire Grounding Kit - an iWire Grounding Kit is essential for this Battery Relocation Kit to work properly. If you already have one, you are all set. If you need one we've packaged these two items together for a $50 savings!

Compatible Cars:
All Subaru Model and Years

Fitment Notes:

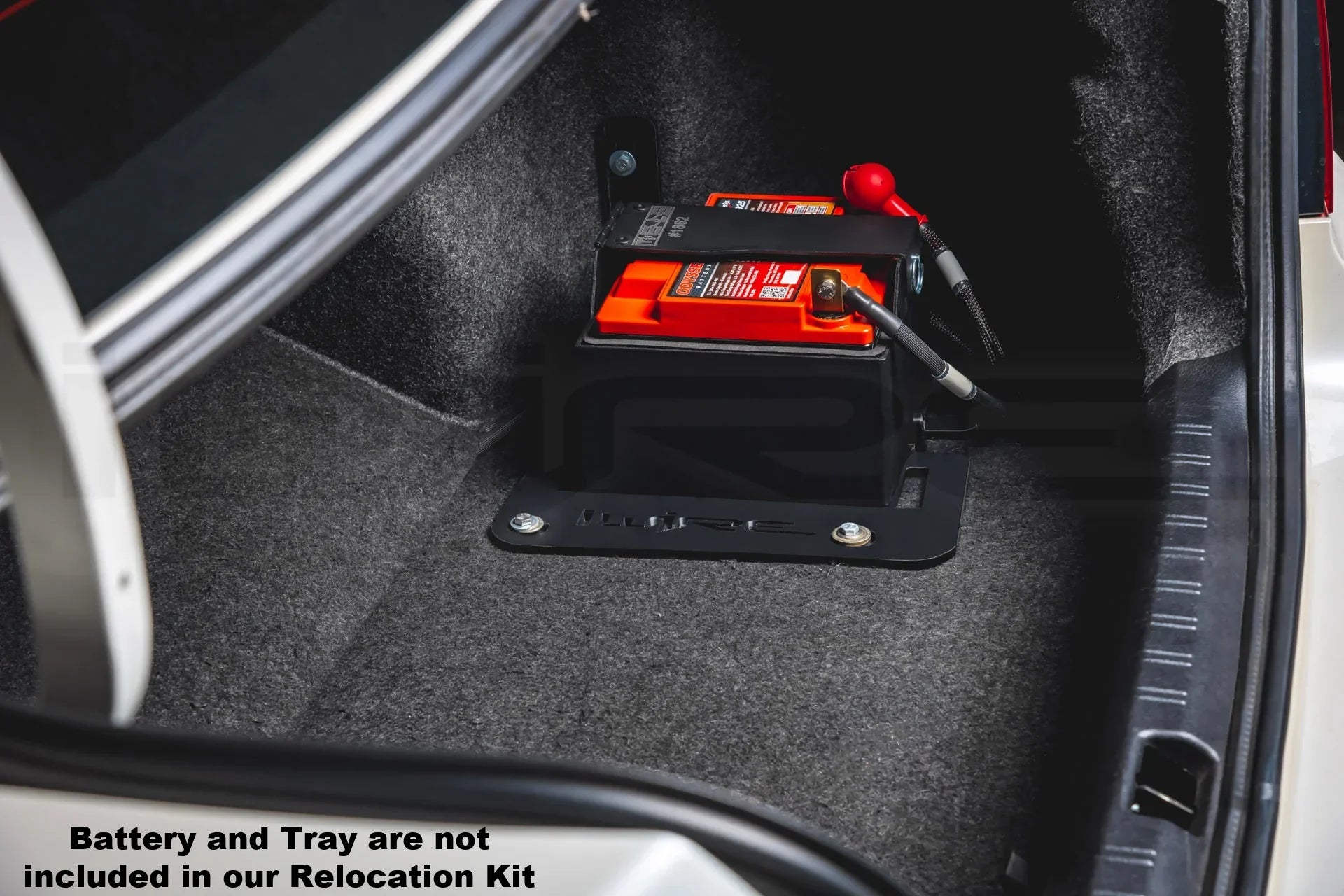

DOES NOT INCLUDE BATTERY OR TRAY

FA Platform models (IE 15+ WRX) come with a battery sense wire. Please note if you have the FA platform with the battery sense wire so we can include an extension to relocate it to the back.

FA Platform models (IE 15+ WRX) also have electronic power steering. There is a additional fuse that needs to be repurposed for this module. We do not have a solution for this yet.

PRODUCT WARNING:

Installation or use of any iWire product by a user is at the user’s own risk. iWire accepts no liability for any damage to the car or individual. Modifying the battery system can be dangerous. iWire recommends that all products, especially those regarding the battery, be installed by a licensed professional. By purchasing this product, you accept these terms of sale.
